1.Core Standard Basic Parameters
This is a full-electric heavy-duty front loader with an operating weight of 19,000 kg and rated load capacity of 5,800 kg. Its standard bucket volume reaches 3.5 m³, with optional buckets ranging from 2.7 m³ to 5.0 m³ to fit diverse material handling needs. The maximum dump height stands at 3345 mm, and breakout force hits 182 kN for efficient digging of gravel, soil and ores. It is equipped with 282 kWh or upgraded 350 kWh lithium iron phosphate battery pack; the traction motor owns 120 kW rated power and 240 kW peak power, matched with electric two-speed AMT transmission. The full hydraulic working system completes a whole loading cycle within 10.5 seconds, ensuring smooth and fast material lifting and dumping.

2.Zero-emission & Ultra-low Operation Cost Design

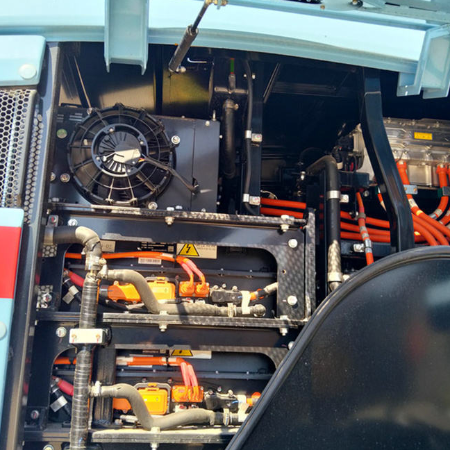

As a pure electric model, it releases no exhaust pollutants and perfectly meets global carbon-neutral construction demands. The three-stage regenerative braking system recycles kinetic energy during deceleration and downhill driving, extending continuous working duration to 6–10 hours per full charge. Fast charging support enables 20%–80% battery replenishment in only 50 minutes to cut waiting downtime. Without complex diesel engine maintenance items like oil filters and injectors, its daily maintenance cost is reduced by over 70% compared with traditional diesel loaders, bringing remarkable long-term economic benefits for mine, port and municipal projects.

3.High-efficiency Electric Drive & Stable Performance
High-power permanent magnet synchronous motors deliver instant strong torque and quick dynamic response. The integrated VCU intelligent control system automatically matches power output under light, medium and heavy load modes to avoid energy waste. Heavy-duty reinforced drive axles and high-strength articulated frame bear frequent heavy-load operations with low failure rate. The whole machine operates 18 dB quieter and generates 30% less vibration than diesel counterparts, creating a mild working environment for operators and reducing noise pollution on construction sites.

4.Safe, Comfortable & Humanized Operation Cabin
The ROPS & FOPS integrated panoramic cabin adopts silicone oil shock absorption to minimize cab shaking. A built-in 360° surround view camera eliminates blind spots for safer moving and loading. The ergonomic shock-absorbing seat and integrated pilot joystick lower operator fatigue during all-day shifts. The dual-circuit air conditioner realizes rapid cooling and heating, while real-time battery, motor and fault monitoring screen displays all operating data at a glance for convenient machine management.

5.Complete Global Export Certifications & Wide Application
It has obtained full CE, ISO9001, UN38.3 and IEC62619 battery safety certifications, complying with import standards of Europe, Central Asia, Southeast Asia and Africa. This electric loader adapts to multiple scenarios including mining stockyards, port cargo handling, stone plants, municipal waste transportation and road construction, serving as an ideal low-carbon heavy loading equipment for modern green engineering projects.
