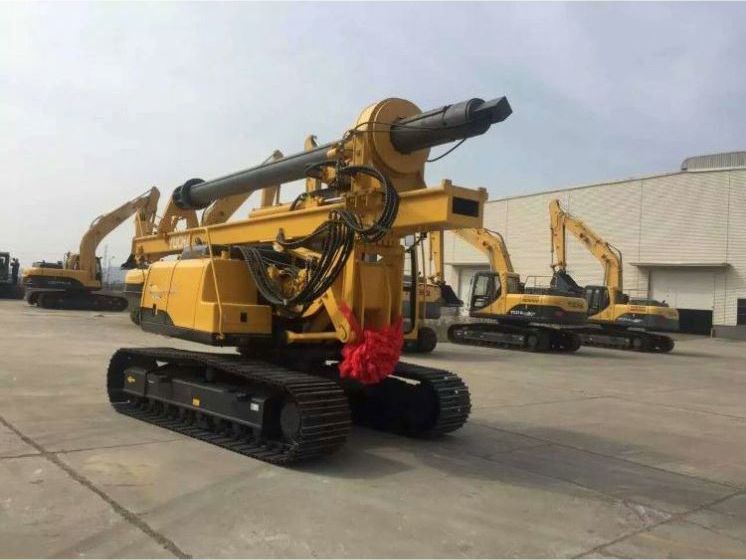

YUCHAI YCR60D Drilling Machinery Rotary Drilling Rig
Model:
YCR60D
View All >
Category:
Drilling Machinery
Product:
Rotary Drilling Rig
Brand Name:
YUCHAI
Dimension (mm):
11120mm×3480mm×2600mm
Operating weight (kg):
20 Ton
Origin:
CHANGZHOU
Key Attributes
Engine Rated Power:
86kW/2200rpm
Max. Drilling Diameter:
1200mm
Max. Drilling Depth:
28m
Main Winch Lifting Force:
70kN
Drill Pipe Type:
0299-4×7.6m 摩阻杆
Drill Pipe Length:
12460mm
Engine typе:
康明斯 QSF3.8
The maximum out torque :
60kN m
The maximum drilling diameter:
1200mm
The maximum drilling depth:
28m/22m (4节摩阻式/3节机锁式)
Packaging & Shipping
Overall Dimensions (L×W×H):
11120mm×3480mm×2600mm
Overall Weight:
20 Ton
Shipping Method:
BULK
Delivery Period:
30 天
Certificate:
CO
Origin:
CHANGZHOU
HS Code :
8426411000
Detailed Specifications
YUCHAI ROTARY DRILLING RIG YCR60D
CHASSIS
Engine ModelQSF3.8
Rated Power/Rotary Speed86/2200kW/rpm
Track width(margin)2600mm
Track shoe width600mm
Track shoe width104mm
ROTARY DRIVE
Max.output torque60kN·m
Rotary speed0~35rpm
Max.pull-down piston push100kN
Max.pull-down piston pull120kN
Max.pull-down piston strlke1500mm
MAIN WINCH
Max.pulling force90kN
Max.pulling speed70m/min
Wire Rope Diameterφ18mm
AUXILIARY WINCH
Max.pulling force15kN
Max.pulling speed50m/min
Wire Rope Diameterφ12mm
MAST RAKE
Forwards backwards
Side backwards±4°
Hydraulic system
Max.working pressure of main pump32MPa
Drilling hole
Max.Driling Diameter1200mm
The max.drilling depth28m
Main machine
Total working weight20t
Transporting state size11520x2600x3480mm


Company Profile

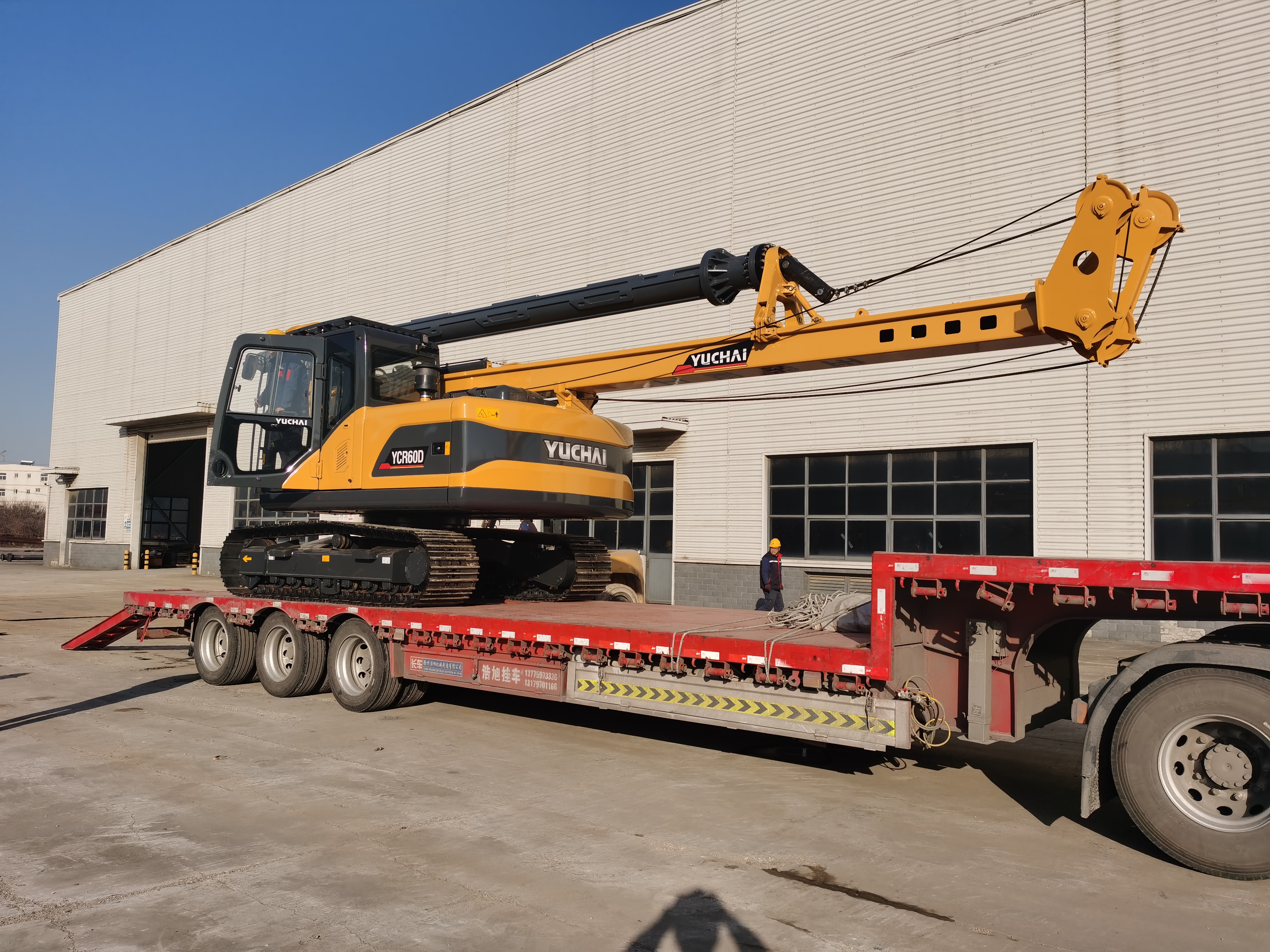

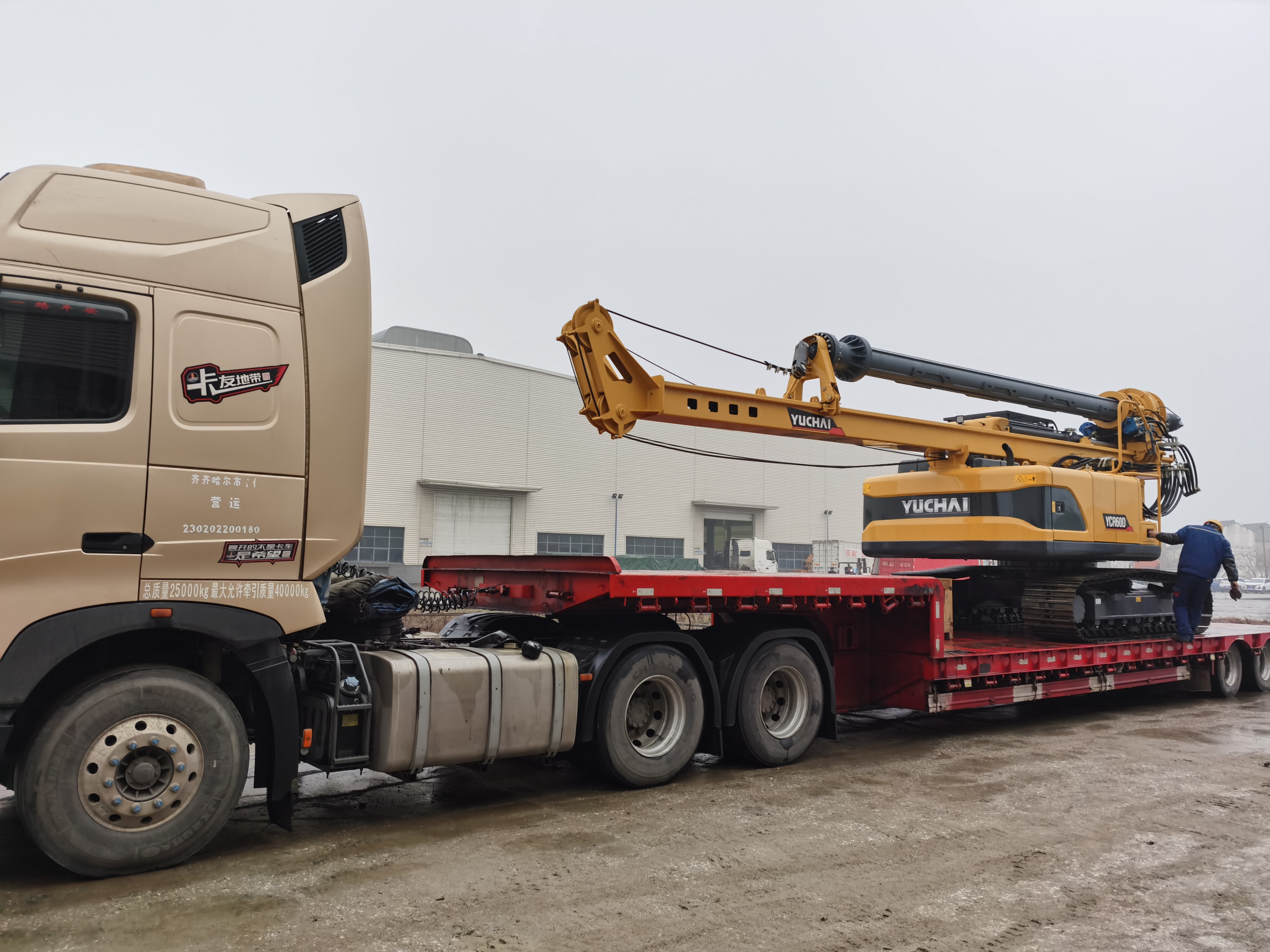

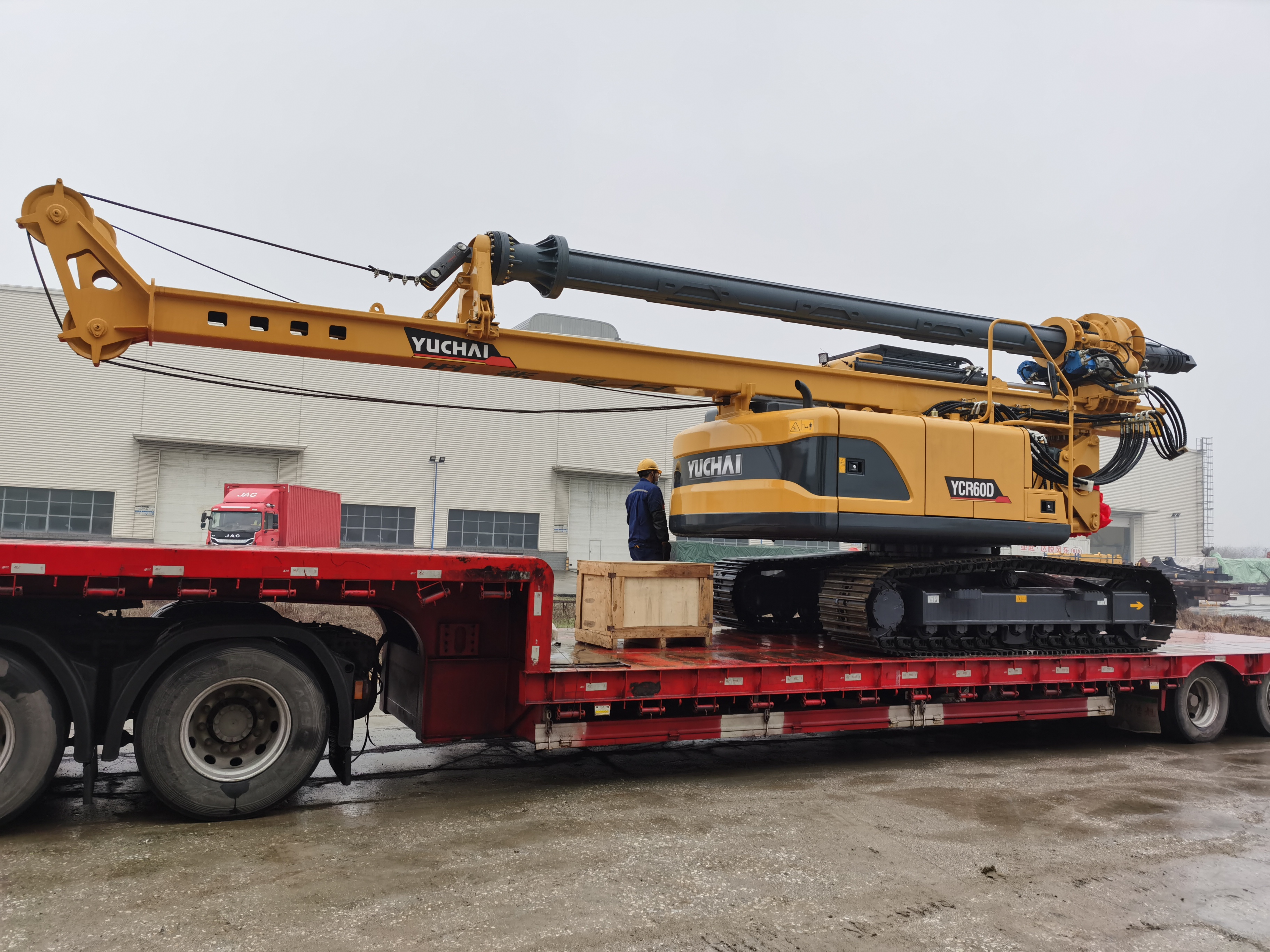

packing & shipping
