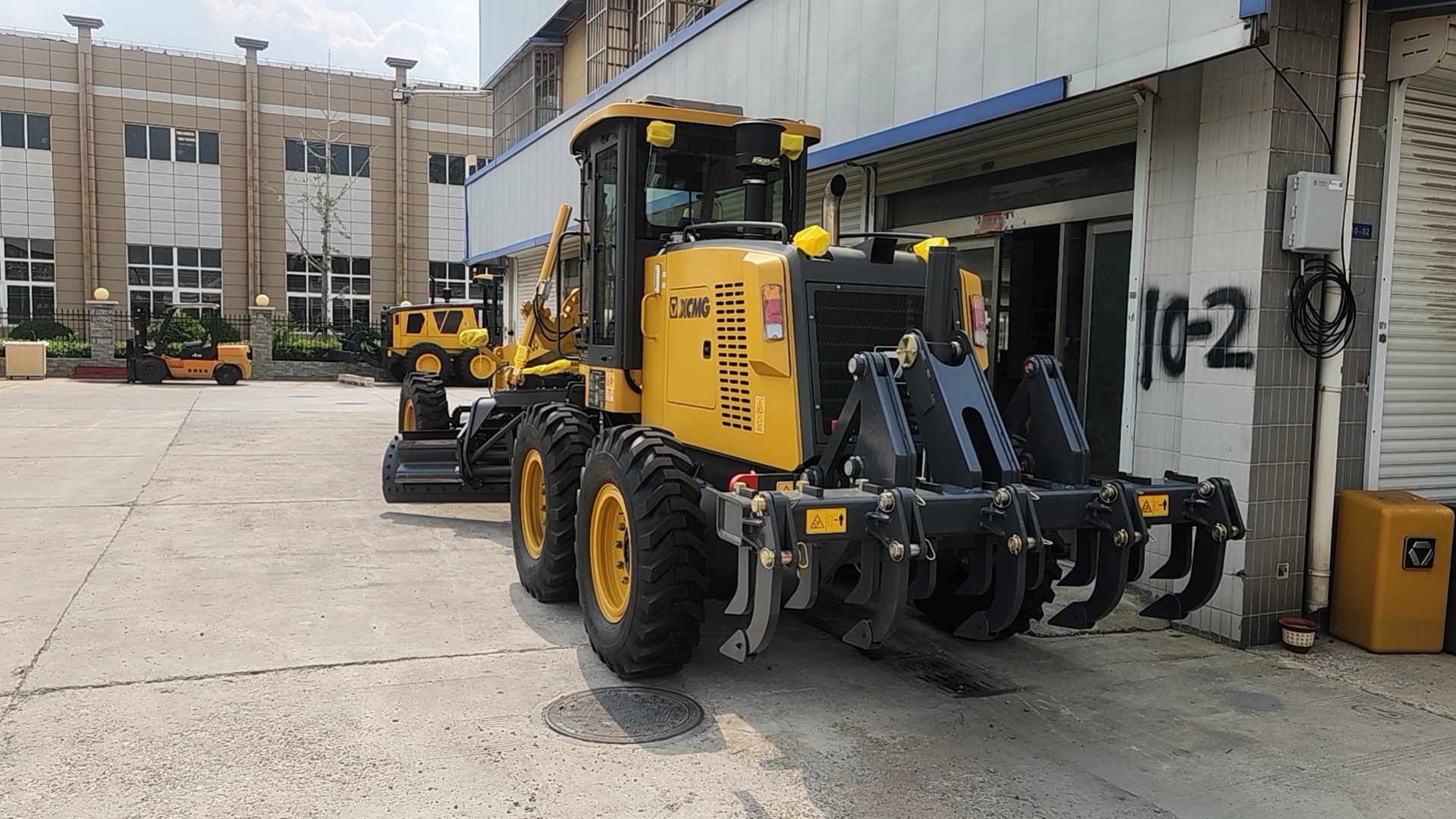

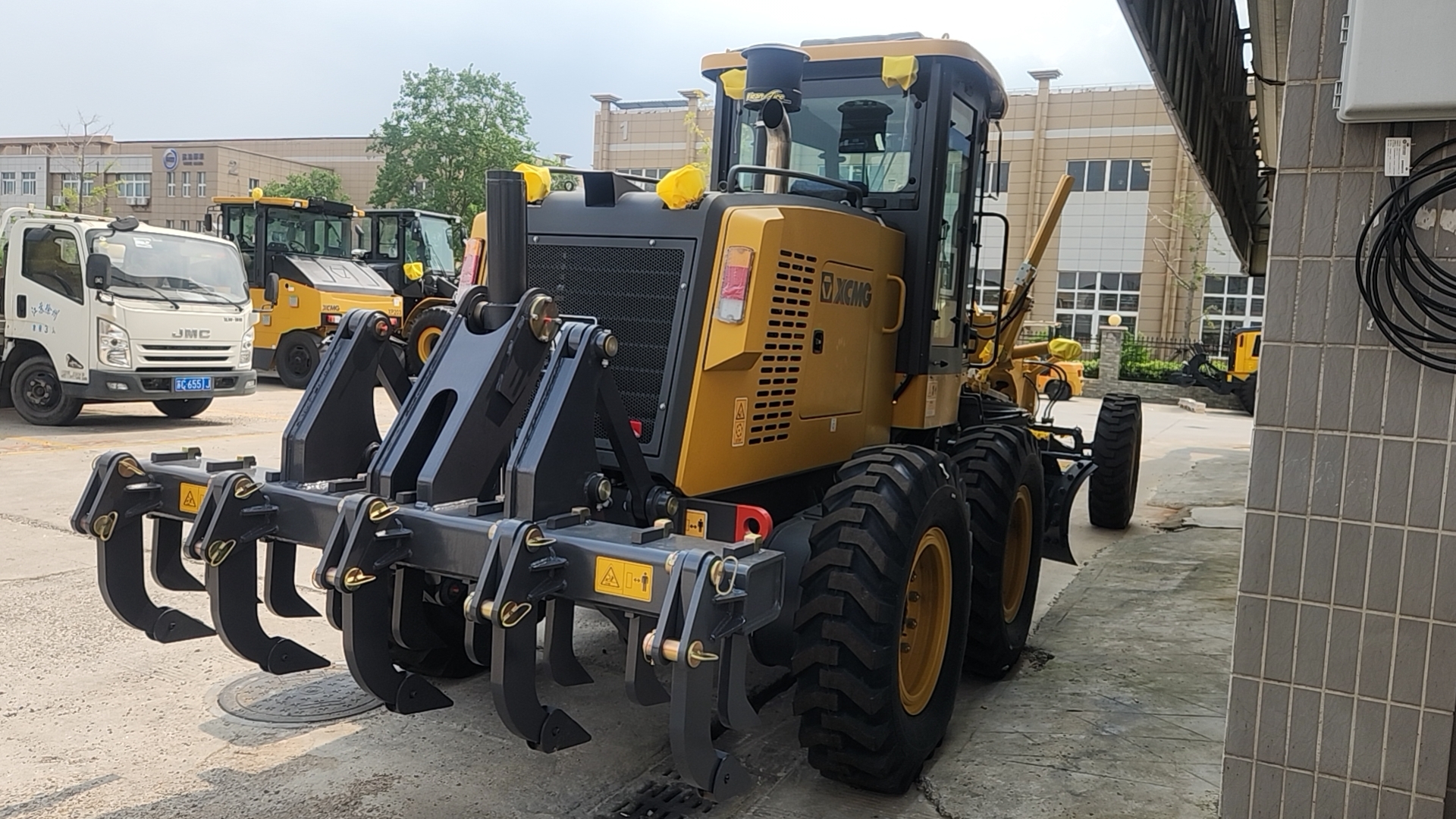

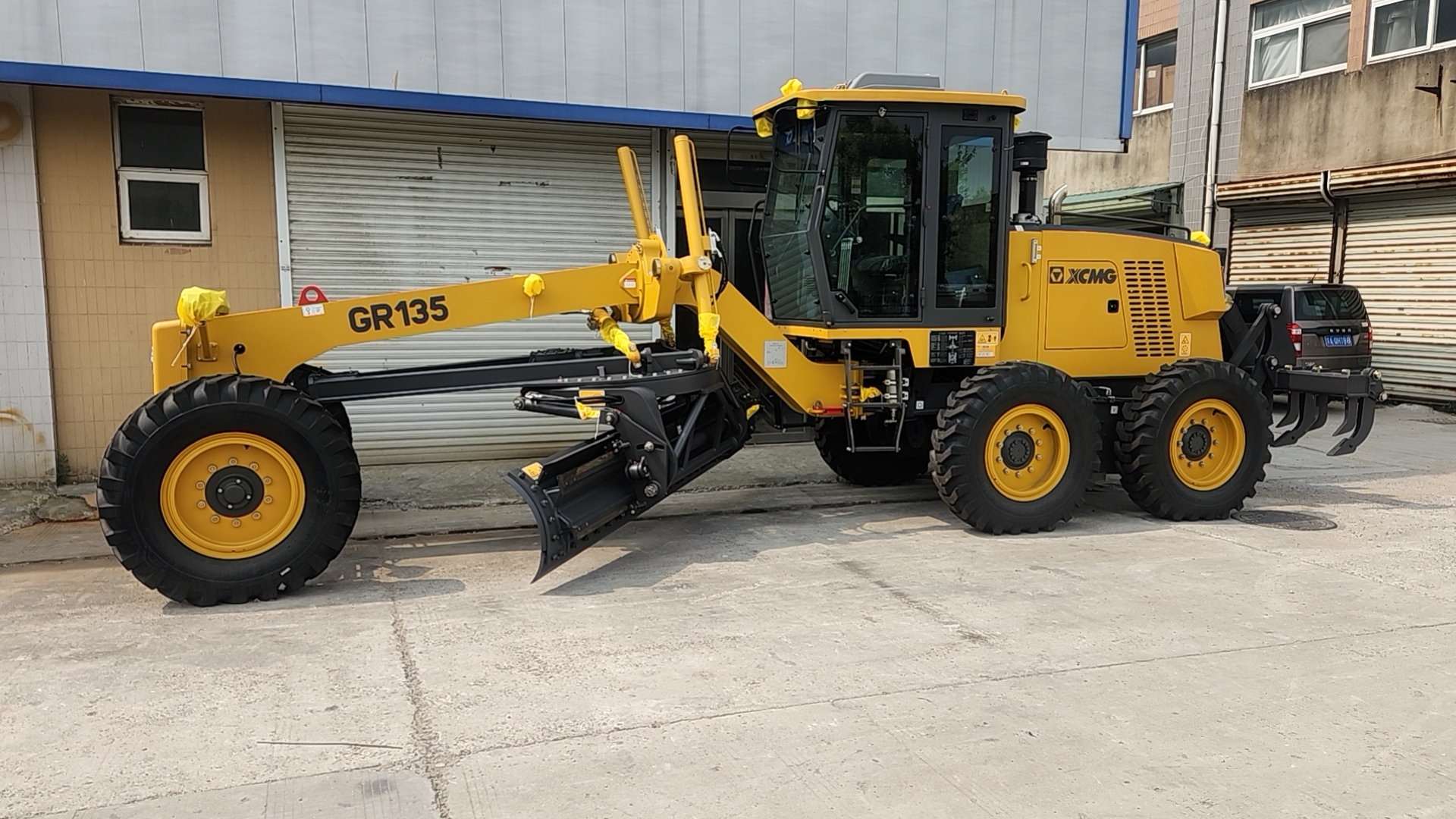

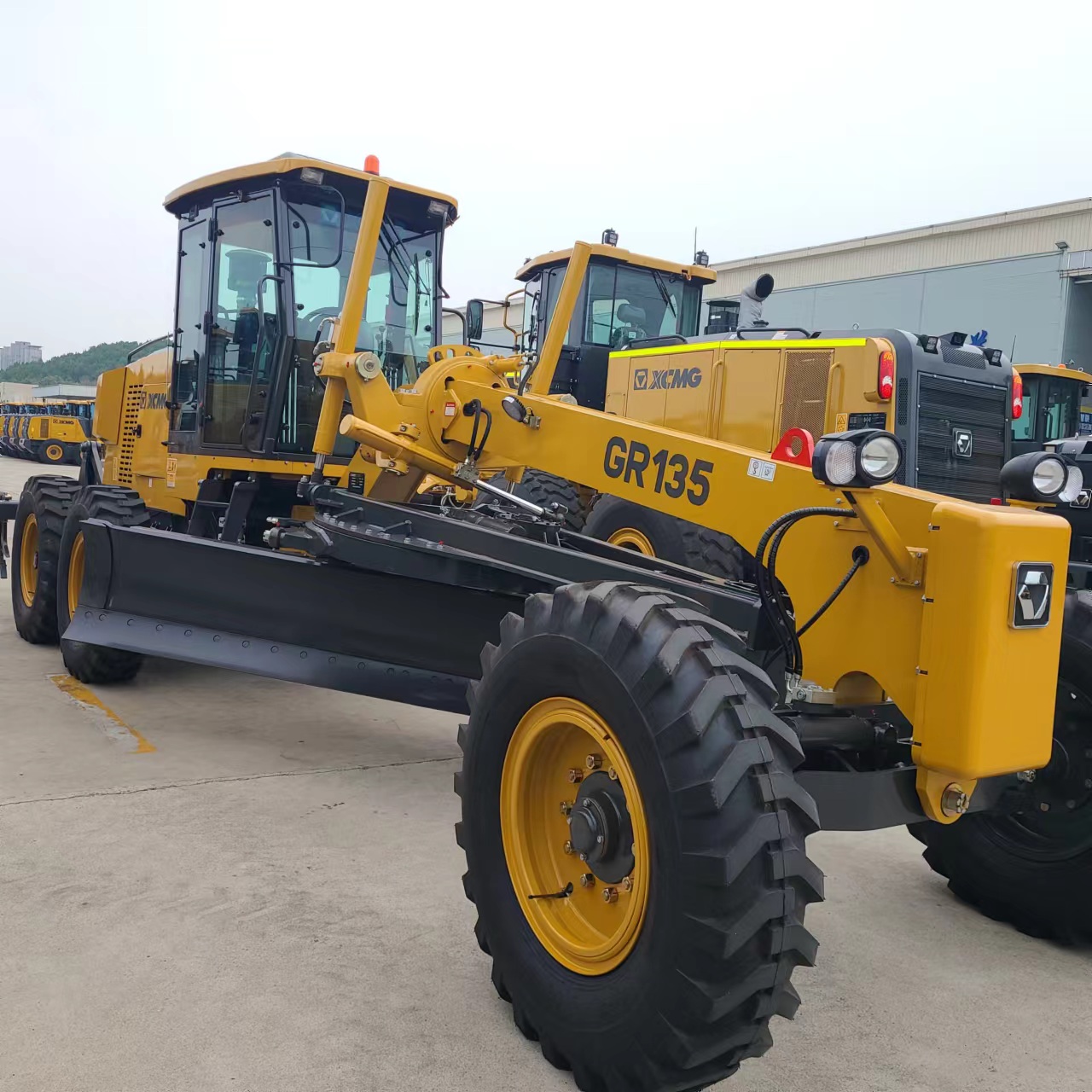

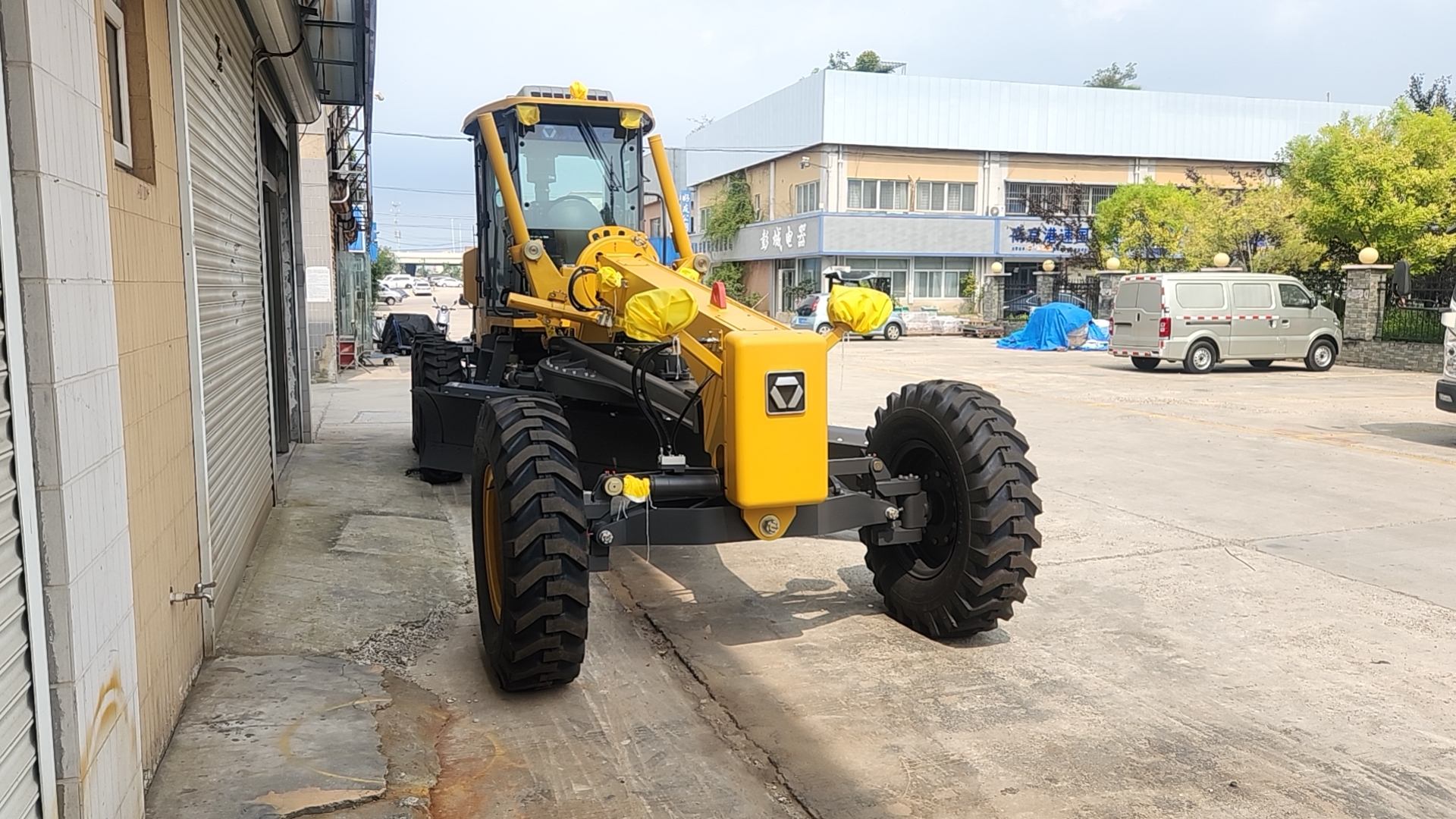

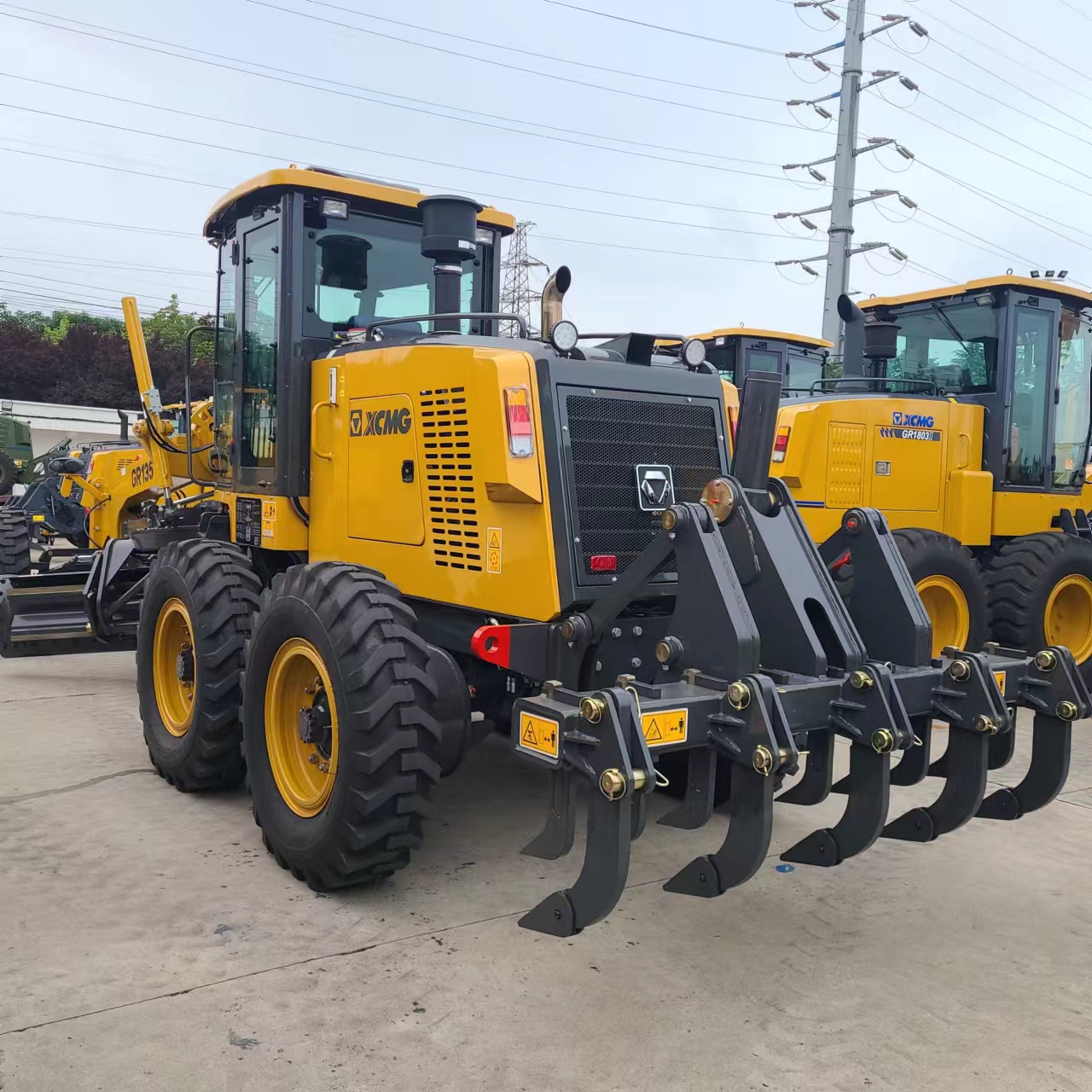

XCMG GR135 Road Construction Machinery Motor Grader

See Full Gallery (6-photos & videos)

Model:

GR135

View All >

Category:

Road Construction Machinery

Product:

Motor Grader

Brand Name:

XCMG

Dimension (mm):

8015x2380x3050mm

Operating weight (kg):

11200kg

Origin:

China

Manual Download

Key Attributes

Engine Power:

112kW

Engine Brand:

Cummins

Travel Speed:

5-42/5-30km/h

Max. Cutting Depth:

515mm

Blade Width:

3660mm

Attachment:

front dozer &rear ripper

Engine model :

6BTA5 9-C150-II

Total weight (standard) :

11200kg

Tire specification :

13 00-24

Ground clearance (front axle) :

515mm

Tread :

2020mm

Space of front and rear axles :

5780mm

Space of middle and rear wheels:

1538mm

Transmission pressure :

1 3—1 8Mpa

Packaging & Shipping

Overall Dimensions (L×W×H):

8015x2380x3050mm

Overall Weight:

11200kg

Shipping Method:

40HQ / BULK CARGO SHIP

Delivery Period:

About 15 days

Certificate:

Origin:

China

HS Code :

16/70-24

Detailed Specifications

1 New appearance design.
2 The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
3 The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
4 The international matching hydraulic parts are adopted,with reliable operation.
5 The motions of the blade are fully hydraulically controlled.
6 The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
7 The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
8 The cab is grand and nice,with wide eyeshot and good sealing .
9 The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .

Basic specification	Engine model 6CTAA8.3 6CTA8.3	Rated power/speed 153kW/2200rpm 160kW/2200rpm	Dimension(LxWxH) 8970×2625×3470mm
Operating weight(Standard) 16500kg	Performance specification	Travelling speed ,forward 5,8,11,19,23,38 km/h	Travelling speed ,reverse 5,11,23 km/h
Tractive force(f=0.75) 82KN	Max. gradeability 20%	Tire inflation pressure 260 kPa	Working hydraulic pressure 16 MPa
Transmission pressure 1.3~1.8MPa	Operating specification	Max. steering angle of front wheels ±50°	Max. lean angle of front wheels ±17°
Max. oscillation angle of front axle ±15°	Max. oscillation angle of balance box 15	Frame articulation angle ±27°	Min. turning radius using articulation 7.3m
Biade	Maximum lift above ground 450mm	Maximum depth of cutting 500mm	Maximum blade position angle 90°
Blade cutting angle 28°—70°	Circle reversing rotation 360°	Moldboard width X height 4270×610mm
