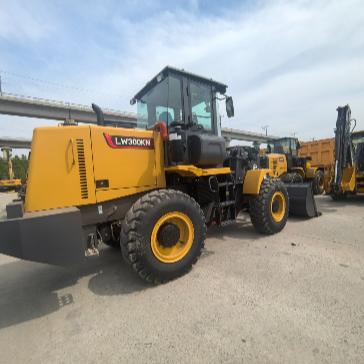

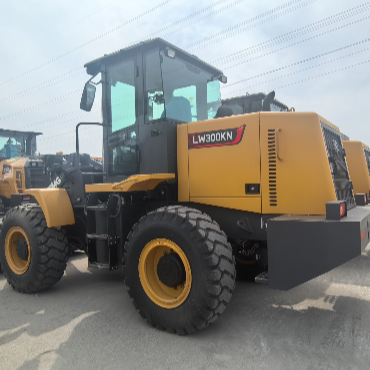

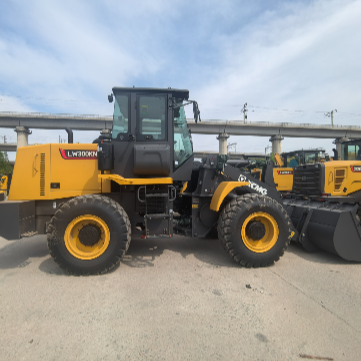

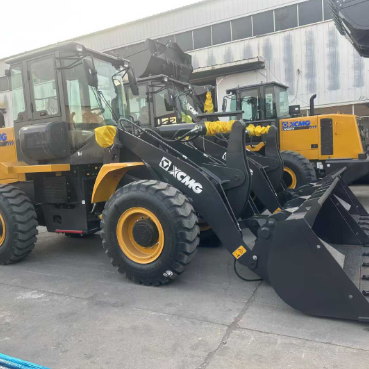

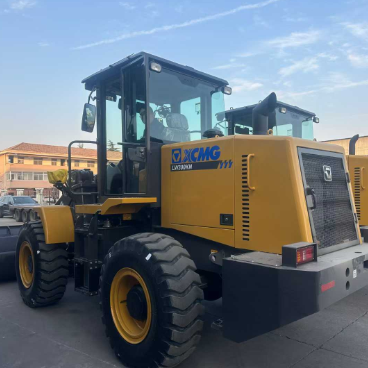

XCMG LW300KN Earthmoving Machinery Wheel Loader

See Full Gallery (7-photos & videos)

Model:

LW300KN

View All >

Category:

Earthmoving Machinery

Product:

Wheel Loader

Brand Name:

XCMG

Dimension (mm):

7245*2482*3320mm

Operating weight (kg):

10900kg

Origin:

China

Manual Download

Key Attributes

Rated Load Capacity:

3000kg

Bucket Capacity:

1.5m³

Max. Dump Height:

2770mm

Engine Power:

92kW

Engine Brand:

Weichai

Transmission Type:

Mechanical transmission

Max breakout force:

130kN

Reach at Max lift:

1010mm

Wheel base:

2900mm

Fuel tank:

170L

Packaging & Shipping

Overall Dimensions (L×W×H):

7245*2482*3320mm

Overall Weight:

10900kg

Shipping Method:

Bulk shipment

Delivery Period:

In stock

Certificate:

Yes

Origin:

China

HS Code :

8428909090

Detailed Specifications

Product Overview

As an outstanding representative of the industry's super-heavy-duty models, LW300KN boasts remarkable advantages in terms of “High energy-conservation, efficiency, reliability, and comfort” compared with industry’s like products and is extensively applicable for earth-moving projects, aggregate yards, municipal constructions, and other bulk material trans-ports.

XCMG’s exclusive technologic advantages

XCMG's exclusive energy-conservation technology - The perfect combination between XCMG’s patented energy-conservation drive system and low speed energy-conservation engine builds the one and only 3t energy-conservation product in the industry, with the economy superior by >10% to the industry’s like products.

XCMG’s patented lubrication technology - The transmission is applied with the XCMG’s patented optimal lubrication system design technology to thoroughly improve the indus-try’s difficulties of insufficient and non-uniform transmission lubrications and make the transmission life remarkably leading the industry.

XCMG's patented high strength frame - With the application of the XCMG’s exclusive high strength single plate beam skeleton structure, the “load-carrying material ratio” is remark-ably leading the industry products.

XCMG's unique structure design - The extended wheelbase and the classic 3rd generation loader structure realize higher working capacity, smaller turning radius, and lower wear of rear wheels.

Item	Specification	Unit
Rated operating load	3000	kg
Bucket capacity	1.5~2.5	m³
Machine weight	10600±200	kg
Dump clearance at maximum lift	2770~3260	mm
Reach at maximum lift	1010~1210	mm
Wheel base	2600	mm
Tread	1850	mm
Height of hinge at maximum lift height	3830	mm
Working height(fully lifted)	4870	mm
Max.breakout force	130	kN
Max.horse power	95	kN
Hydraulic cycle time-raise	5.5	s
Total hydraulic cycle time	10	s
Min. turning radius over tyres	5165	mm
Articulation angle	35±1	°
Gradeability	28	°
Tyre size	17.5-25-12PR
Overall machine dimension L×W×H	7050×2482×3118
Model	WP6G125E22
Emission standards	Emission 2
Rated Power/Speed	92/2300	kW/rpm
Fuel Tank	170	L
Hydraulic Tank	170	L
