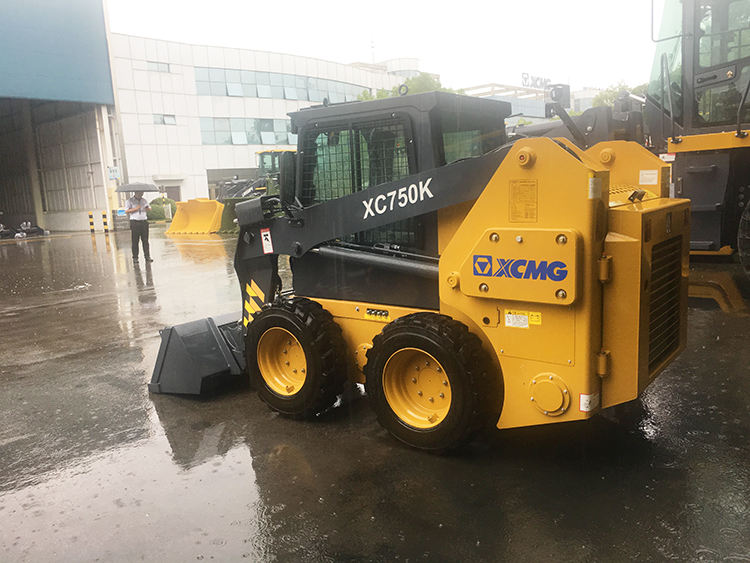

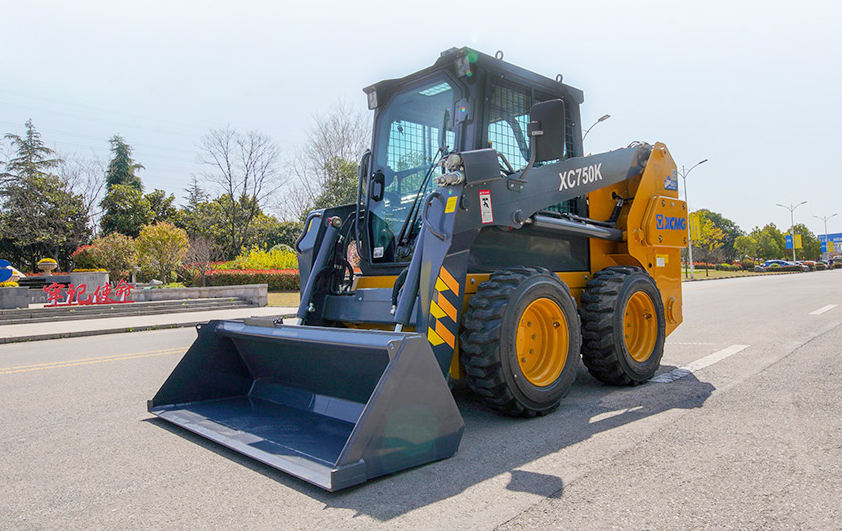

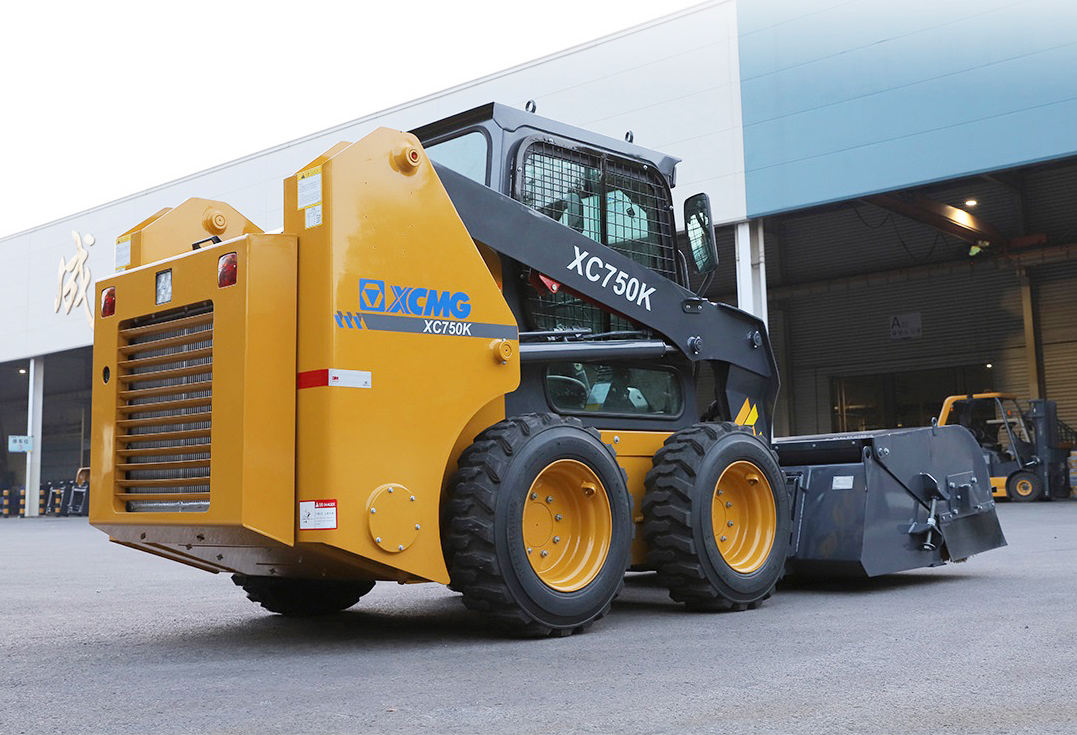

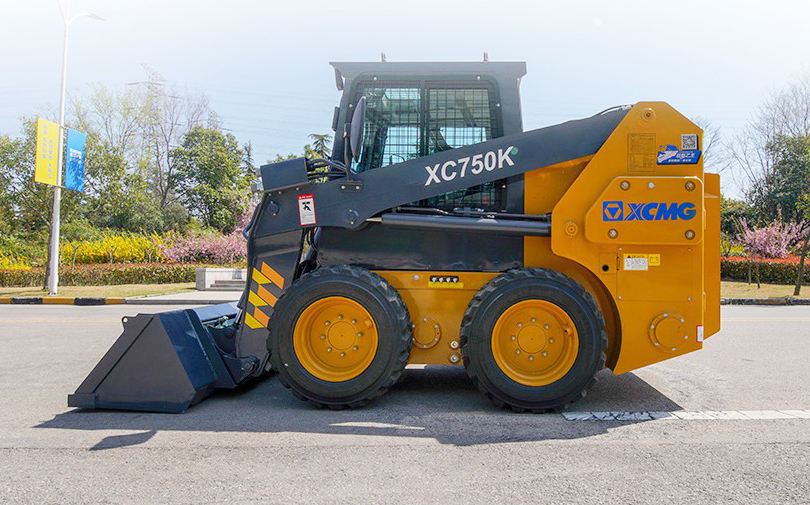

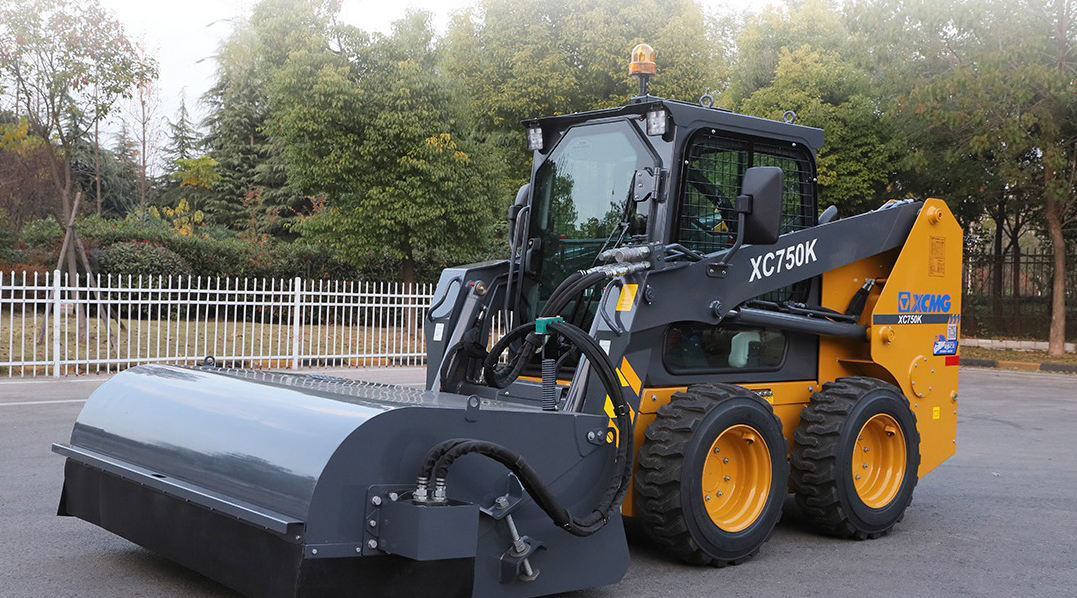

XCMG XC750K Earthmoving Machinery Skid Steer Loader
Model:
XC750K
View All >
Category:
Earthmoving Machinery
Product:
Skid Steer Loader
Brand Name:
XCMG
Dimension (mm):
3360 × 1800 × 1950 mm
Operating weight (kg):
3400 kg
Origin:
Jiangsu, China
Key Attributes
Rated load:
900 kg
Bucket Capacity:
0.45 m³
Rated Operating Capacity:
900 kg
Engine Power:
67.3/50.2 Hp/kw
Engine Brand:
YANMAR 4TNV98
Undercarriage Type:
Wheeled
Operating weight :
3400 kg
Maximum breakout force:
≥20 kN
Maximum traction:
≥24 kN
Rated speed:
2400 rpm
Operation mode:
Pilot hydraulic control & multifunction electronic control
Tire standard:
10-16.5
Maximum speed:
13.5 km/h
Maximum operating height:
3878 mm
Wheel base:
1027 mm
Departure angle:
25 °
Ground clearance:
185 mm
Diesel tank capacity:
80 L
Capacity of hydraulic oil tank:
60 L
Packaging & Shipping
Overall Dimensions (L×W×H):
3360 × 1800 × 1950 mm
Overall Weight:
3400 kg
Shipping Method:
By Container
Delivery Period:
15‑20 Working Days
Certificate:
CE, ISO
Origin:
Jiangsu, China
HS Code :
84271090
Detailed Specifications


徐工XC750K 滑移装载机参数表
参数项 / Parameter Item数值 / Value单位 / Unit
一、核心性能参数
额定载荷 Rated load900kg
倾翻载荷 Tipping load1800kg
整机操作重量 Operating weight3400kg
最大掘起力 Maximum breakout force≥20kN
最大牵引力 Maximum traction≥24kN
二、发动机系统参数
发动机品牌 ManufacturerYANMAR(洋马)-
发动机型号 Model4TNV98-
额定功率 Rated power67.3/50.2Hp/kw
额定转速 Rated speed2400rpm
冷却方式 Cooling modeLiquid(液冷)-
排放等级 DischargeThree stages(三阶段)-
三、操作与行驶参数
操作模式 Operation modePilot hydraulic control & multifunction electronic control-
标准轮胎 Tire standard10-16.5-
最大行驶速度 Maximum speed13.5km/h
四、液压系统参数
液压系统流量 Hydraulic flow rate75.9L/min
可选大流量 Optional large flow119.6L/min
液压系统压力 Hydraulic pressure210bar
五、整机尺寸与作业参数
最大作业高度 Maximum operating height3878mm
铲斗铰接销高度 Bucket hinge pin height3057mm
驾驶室顶部高度 Cabin top height1950mm
铲斗底部最大水平高度 Maximum horizontal height of bucket bottom2851mm
无铲斗长度 Length without bucket2533mm
带铲斗长度 Length with bucket3320mm
倾翻角 Toppling angle40°
最大卸载高度 Maximum unloading height2375mm
铲斗地面夹角 Ground-bucket angle30°
铲斗最高位置旋转角 Rotating angle of bucket at highest point83°
卸载距离 Unloading distance575mm
轴距 Wheel base1027mm
离去角 Departure angle25°
离地间隙 Ground clearance185mm
无铲斗前转弯半径 Front radius of turning circle (without bucket)1183mm
带铲斗前转弯半径 Front radius of turning circle (with bucket)2066mm
后转弯半径 Rear radius of turning circle1564mm
尾部长度 Length of tail1005mm
轮距 Wheel track1380mm
轮胎外缘宽度 Tire edge width1640mm
铲斗外缘宽度 Bucket edge width1800mm
六、容量参数
铲斗容量(堆高) Bucket capacity (stacking height)0.45
柴油箱容量 Diesel tank capacity80L
液压油箱容量 Capacity of hydraulic oil tank60L
