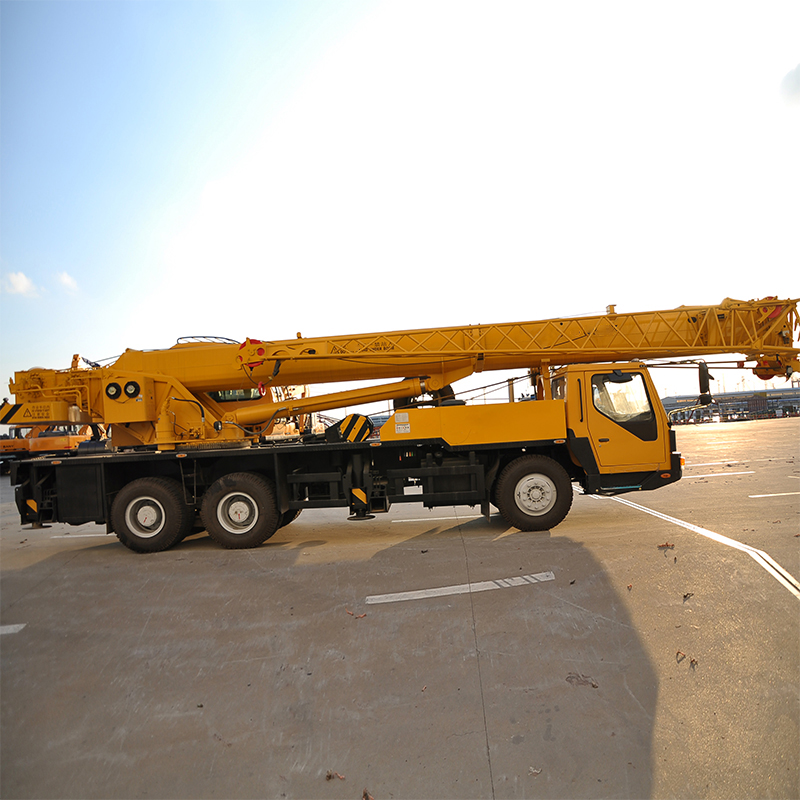

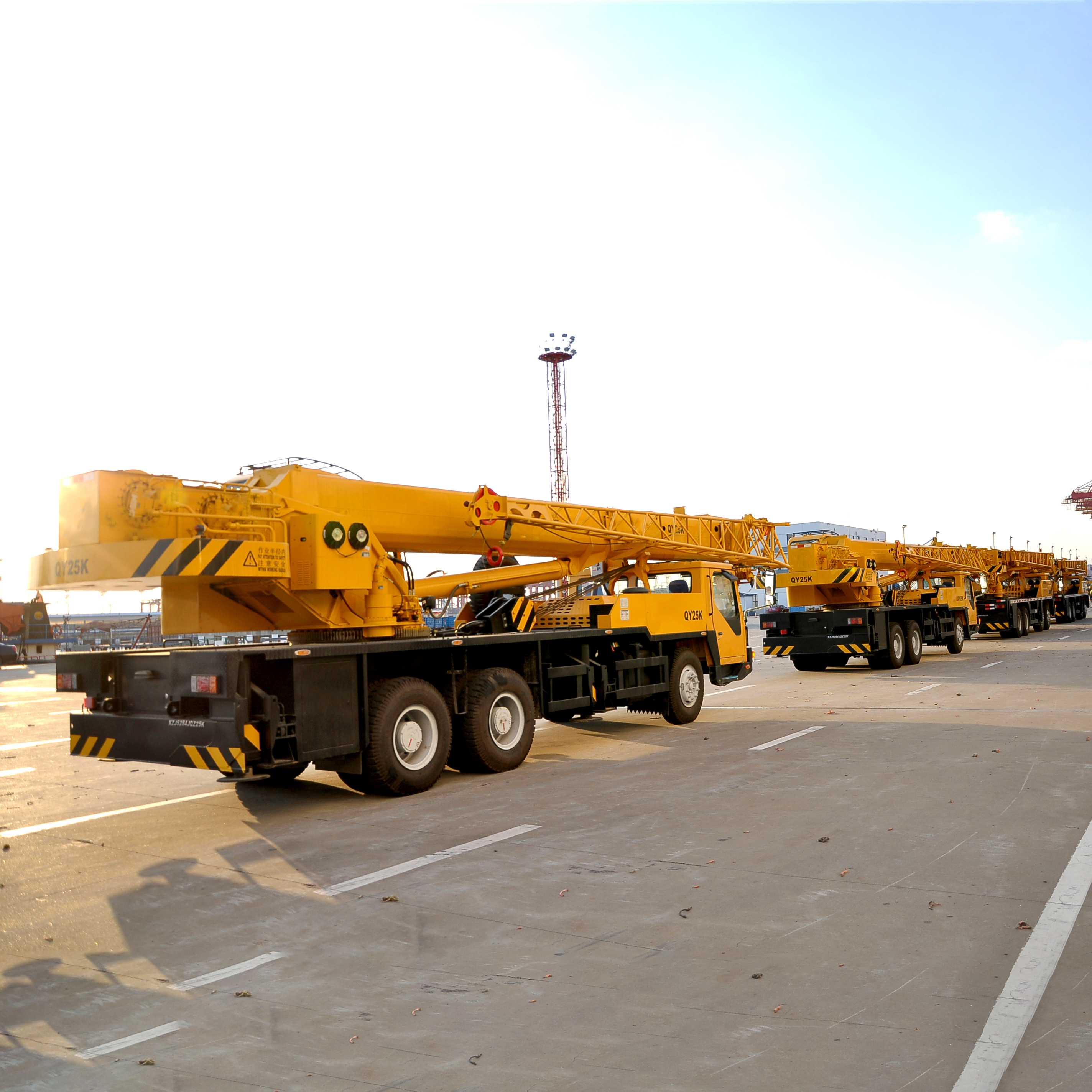

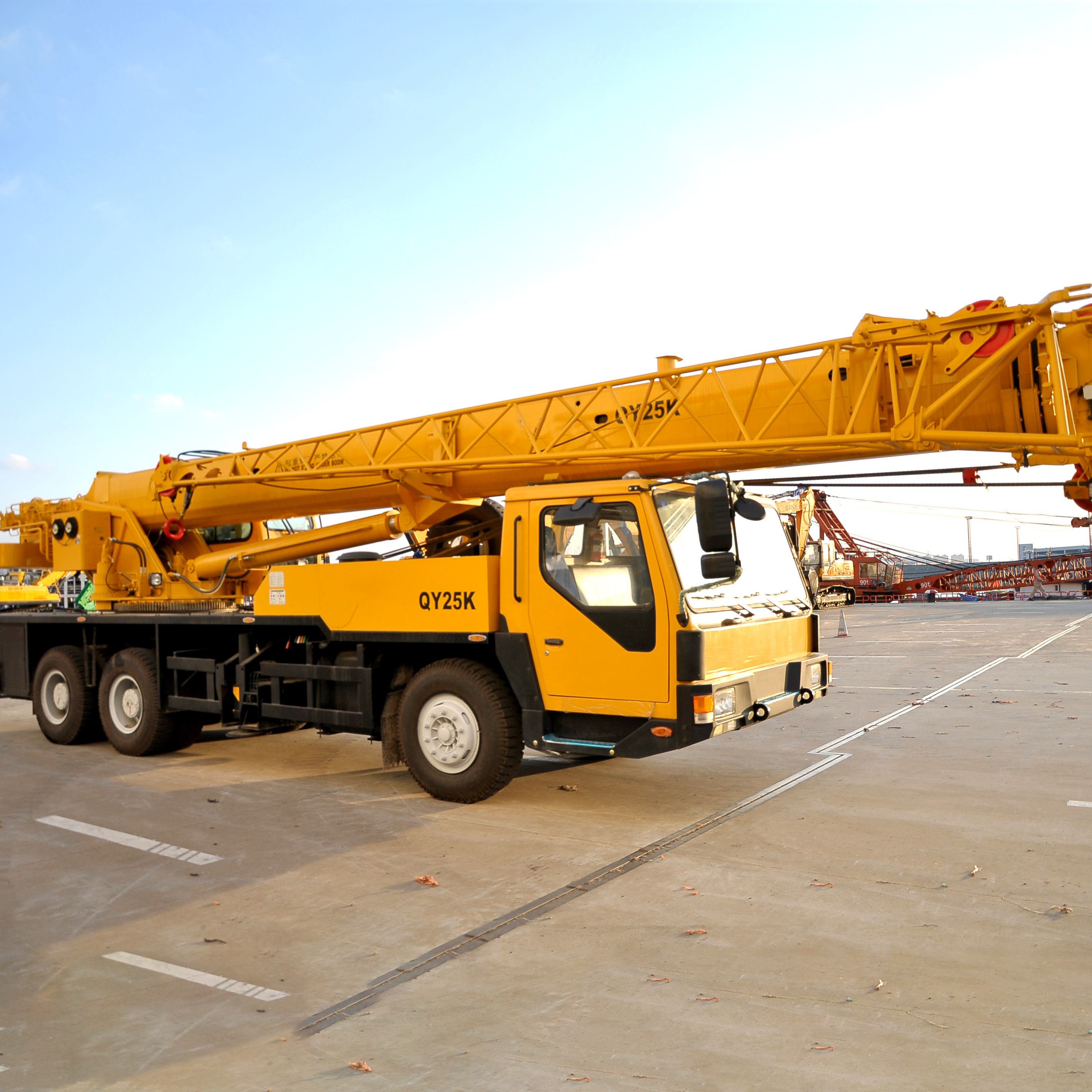

XCMG QY25K Lifting Machinery Truck Crane
Model:
QY25K
View All >
Category:
Lifting Machinery
Product:
Truck Crane
Brand Name:
XCMG
Dimension (mm):
12550*2500*3380mm
Operating weight (kg):
29400kg
Origin:
China
Key Attributes
Max. Lifting Capacity:
25Ton
Max. Lifting Height:
3m
Main Boom Length:
10.6m
Number of Axles:
3
Boom Sections:
5
Engine Brand:
Shanghai Diesel
Packaging & Shipping
Overall Dimensions (L×W×H):
12550*2500*3380mm
Overall Weight:
29400kg
Shipping Method:
Ro‑Ro, Break‑Bulk vessel, Flat‑Rack container
Delivery Period:
7day
Certificate:
CO (Certificate of Origin)
Origin:
China
HS Code :
8705109100
Detailed Specifications

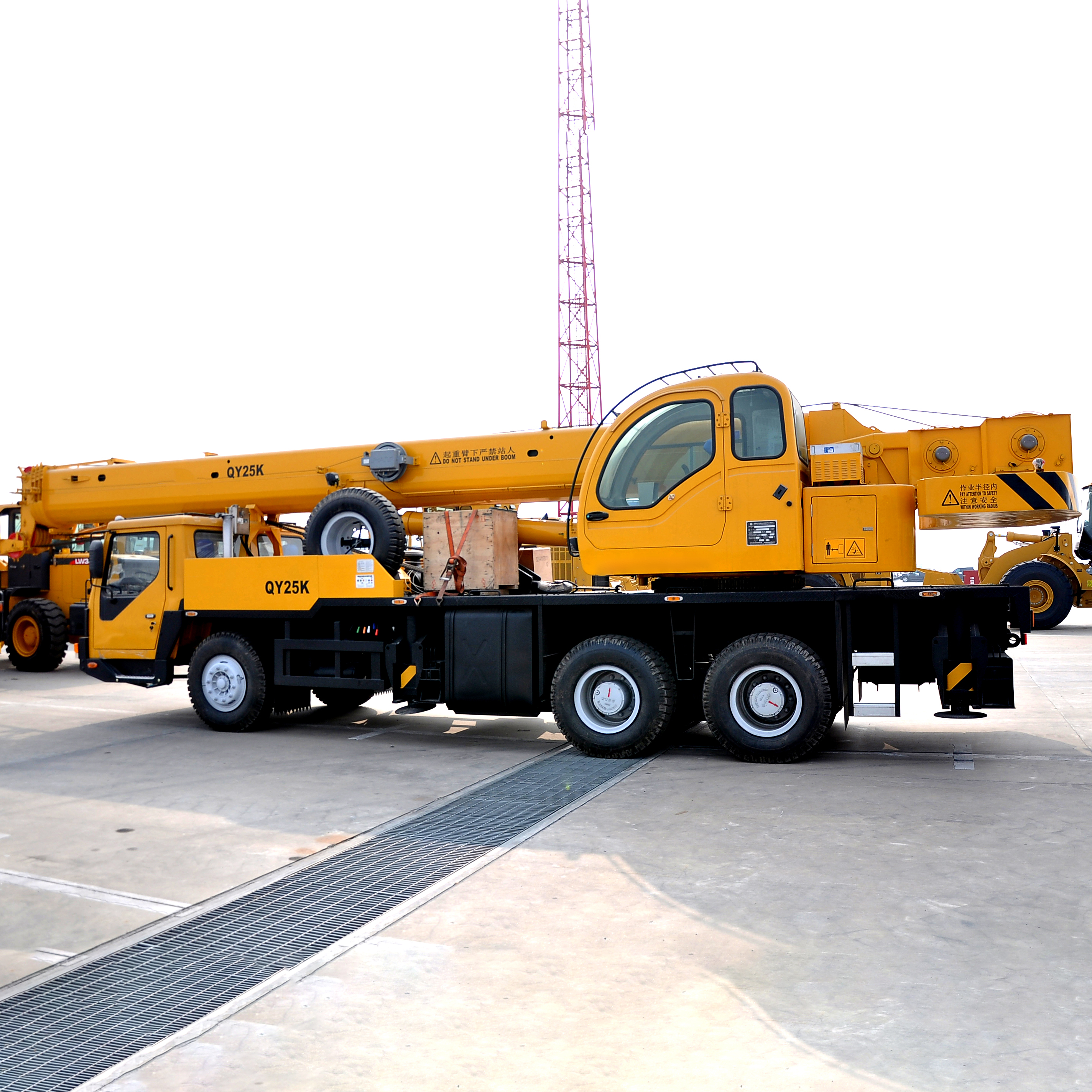

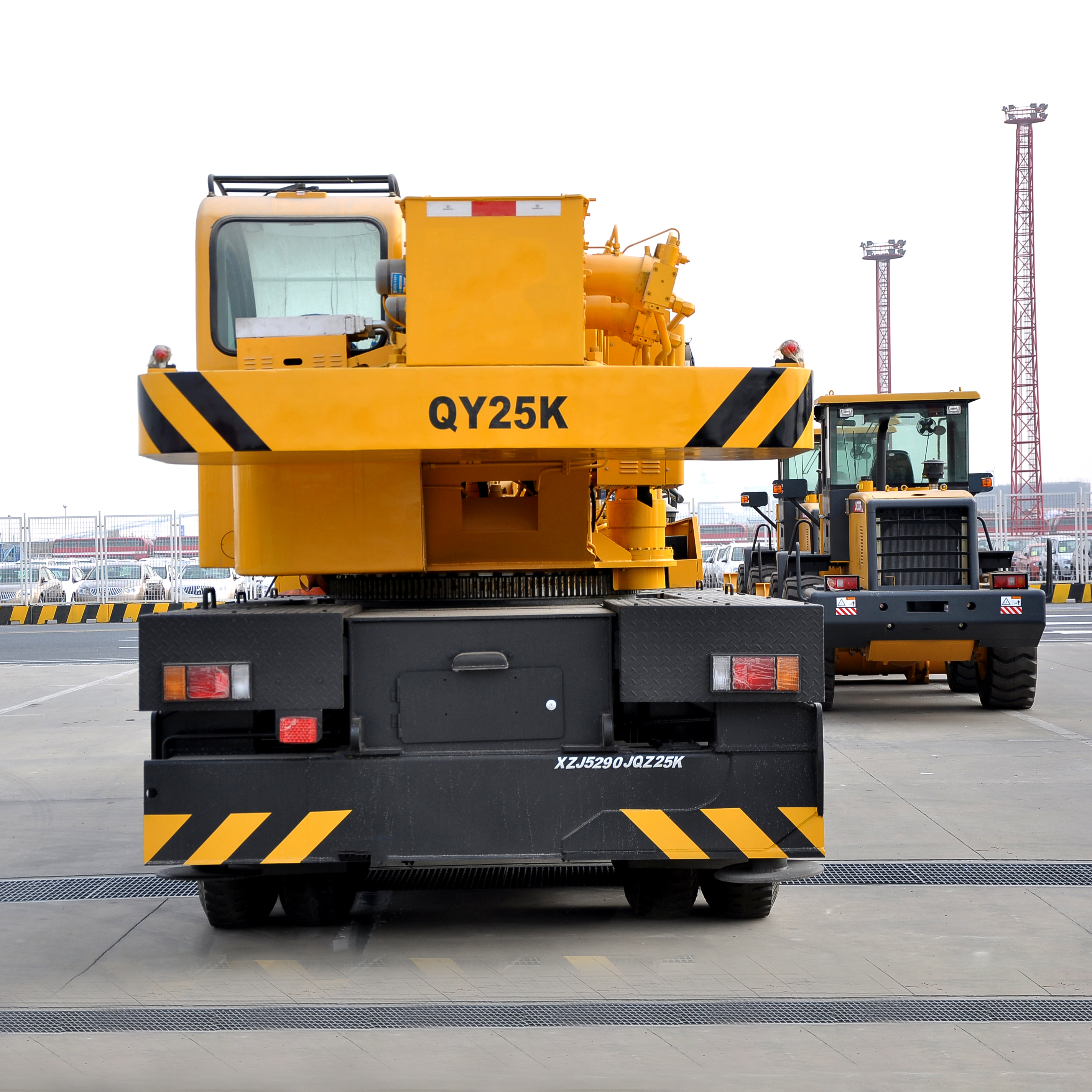

The XCMG QY25K is a reliable 25‑ton mobile truck crane, classified under lifting machinery. It adopts a 3‑axle truck chassis for flexible road driving, capable of traveling on public roads for quick site transfer.

Equipped with 5‑section main boom, the maximum main boom length reaches 39.5m. An auxiliary jib is available as optional configuration to further extend working height and radius. The power system is supported by Shanghai Diesel engine, delivering stable power output and good fuel economy, adapting to various tough construction sites.

This truck crane is widely used for material hoisting, equipment installation, building construction, infrastructure projects and other lifting operations.

For shipment, multiple sea transport options are available: Ro‑Ro vessel, Break‑Bulk vessel or Flat‑Rack container. Please note that flat‑rack container shipment requires partial disassembly of the boom.

Custom requirements on emission standard and spare parts are acceptable. Welcome to contact us for detailed quotation.

尺寸参数Unit
整体全长mm12550
整机全宽mm2500
整机全高mm3380
重量参数
行驶状态整机质量kg29400
前轴轴荷kg6200
后轴轴荷kg23200
动力参数
发动机型号SC8DK280Q3 / WD615.329(国III)
发动机额定功率kW/(r/min)206/2200 213/2200
发动机额定扭矩N.m/(r/min)1112/1400 1160/1400
行驶参数
最高行驶速度km/h75
最小转弯直径m22
最小离地间隙mm260
接近角°16
离去角°13
最大爬坡能力%30
百公里油耗L≈37
主要性能参数
最大额定总起重量t25
最小额定幅度mm3000
转台尾部回转半径m3.065
最大起重力矩kN.m1000
基本臂m10.6
最长主臂m33
最长主臂+副臂m41.15
支腿纵向距离m5.14
支腿横向距离m6
工作速度参数
起重臂变幅时间s75
起重臂全伸时间s100
最大回转速度r/min≥2.5
主起升机构最大速度(单绳)m/min≥120
副起升机构最大速度(单绳)m/min≥120
