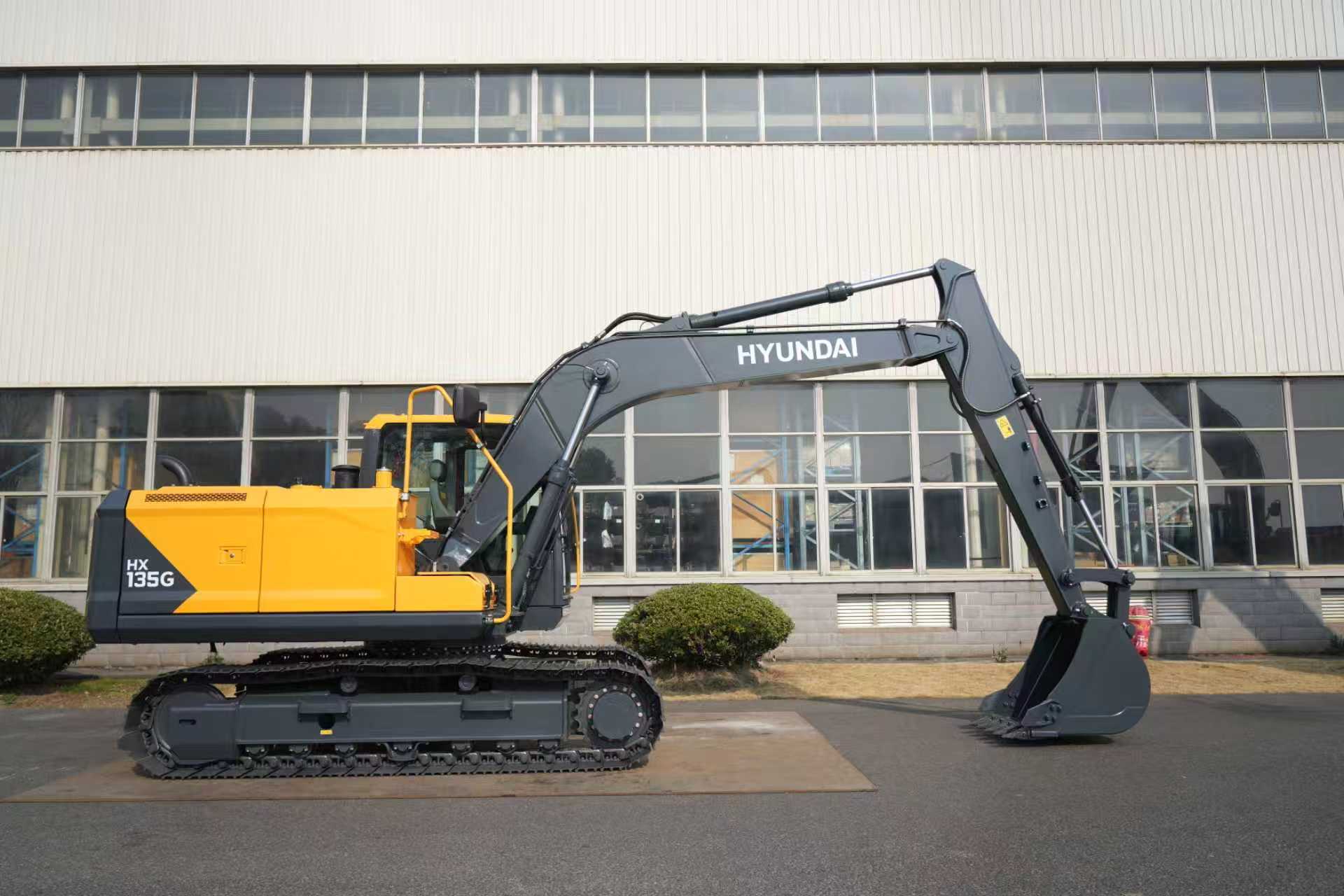

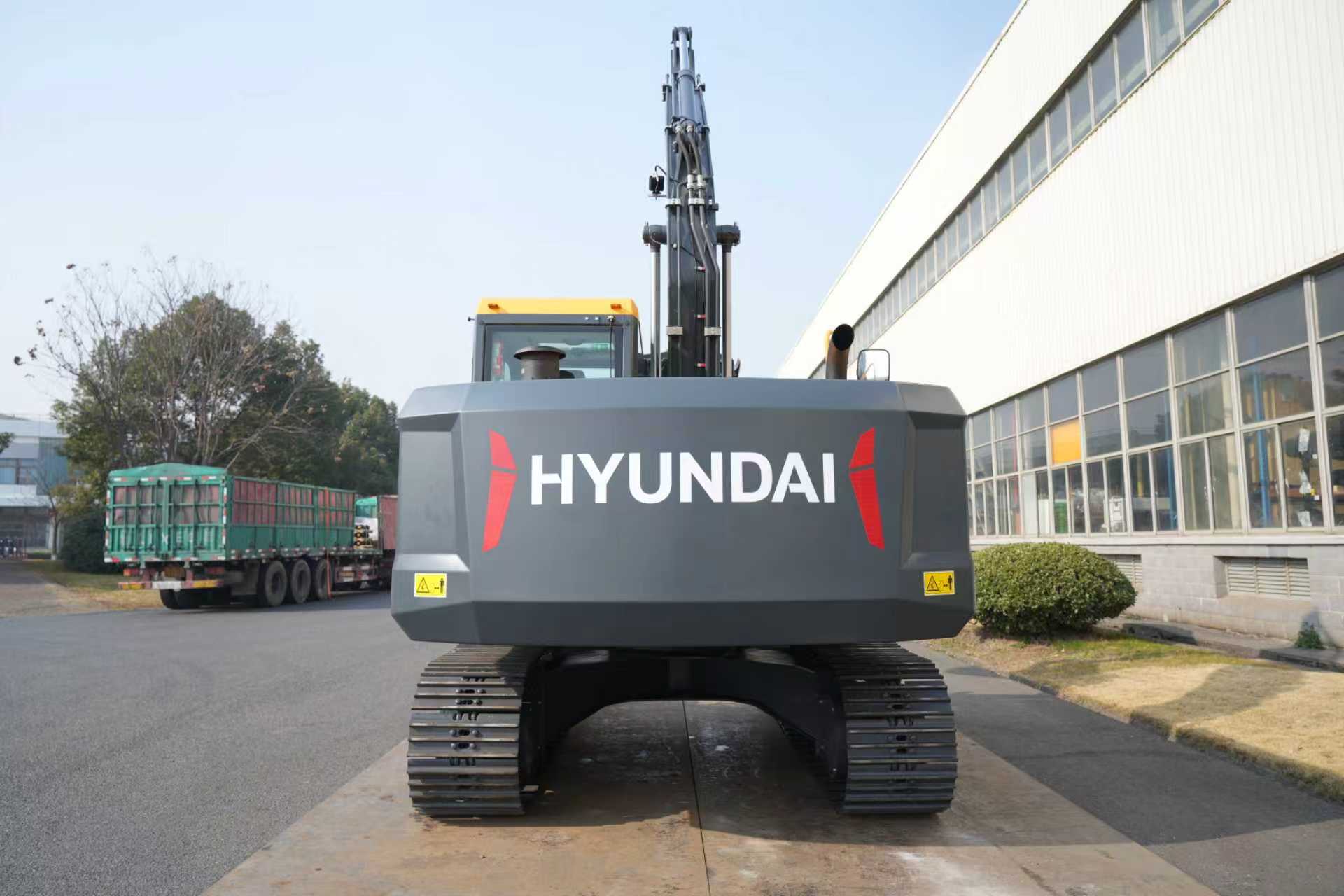

HYUNDAI HX135G Earthmoving Machinery Crawler Excavator
Model:
HX135G
View All >
Category:
Earthmoving Machinery
Product:
Crawler Excavator
Brand Name:
HYUNDAI
Dimension (mm):
788X250X290 cm
Operating weight (kg):
13800 kg
Origin:
Korea
Min Order Quantity:
1 Unit
Delivery Time:
Summary
Bucket Capacity:
0.56m³
Max. Digging Height:
8510
Max. Digging Depth:
5310
Engine Brand:
WEICHAI
Engine Power:
74KW
Digging Force:
76kN
Specifications
Packaging & Shipping
Overall Dimensions (L×W×H):
788X250X290 cm
Overall Weight:
13800 kg
Shipping Method:
Bulk cargo shipment
Delivery Period:
20 days
Certificate:
Provided
Origin:
Korea
HS Code :
8429521200
Details
ItemSpecification
ModelHX135G
Operating Weight13,800 kg
Bucket Capacity0.56 m³
Engine BrandWeichai (Standard) / Yuchai (Optional)
Engine ModelWP4.1G100E440 (Weichai) / YCF36125-T482 (Yuchai)
Rated Engine Power74 kW @ 2,200 rpm
Emission StandardChina IV / Tier 4 Final
Max. Torque480 N·m @ 1,300~1,600 rpm
Displacement4,088 cc
Max. Digging Depth5,310 mm
Max. Digging Height8,510 mm
Bucket Digging Force (ISO)76 kN (7.6 tonf)
Arm Digging Force (ISO)62 kN (6.3 tonf)
Swing Speed10.6 / 11.5 rpm
Swing Torque40 kN·m
Travel Speed3.6 / 5.6 km/h
Gradeability35°
Max. Drawbar Pull115 kN (11.5 tonf)
Boom Length4,600 mm
Arm Length2,500 mm
Overall Length7,880 mm
Overall Width2,500 mm
Overall Height2,865 mm
Track Shoe Width500 mm
Minimum Ground Clearance422 mm
Tail Swing Radius2,559 mm
Fuel Tank Capacity290 L
Hydraulic Tank Capacity200 L
Engine Oil Capacity12 L
