XCMG GR215 Road Construction Machinery Motor Grader
Model:
GR215
View All >
Category:
Road Construction Machinery
Product:
Motor Grader
Brand Name:
XCMG
Dimension (mm):
8970*2625*3420mm
Operating weight (kg):
16500kg
Origin:
China
Key Attributes
Engine Power:
153kw
Engine Brand:
6CTAA8.3/6CTA8.3
Travel Speed:
5,11,23 km/h
Max. Cutting Depth:
500mm
Blade Width:
4270mm
Attachment:
Standard equipment
Packaging & Shipping
Overall Dimensions (L×W×H):
8970*2625*3420mm
Overall Weight:
16500kg
Shipping Method:
Ocean freight
Delivery Period:
21 days
Certificate:
CE
Origin:
China
HS Code :
Detailed Specifications

Product Description

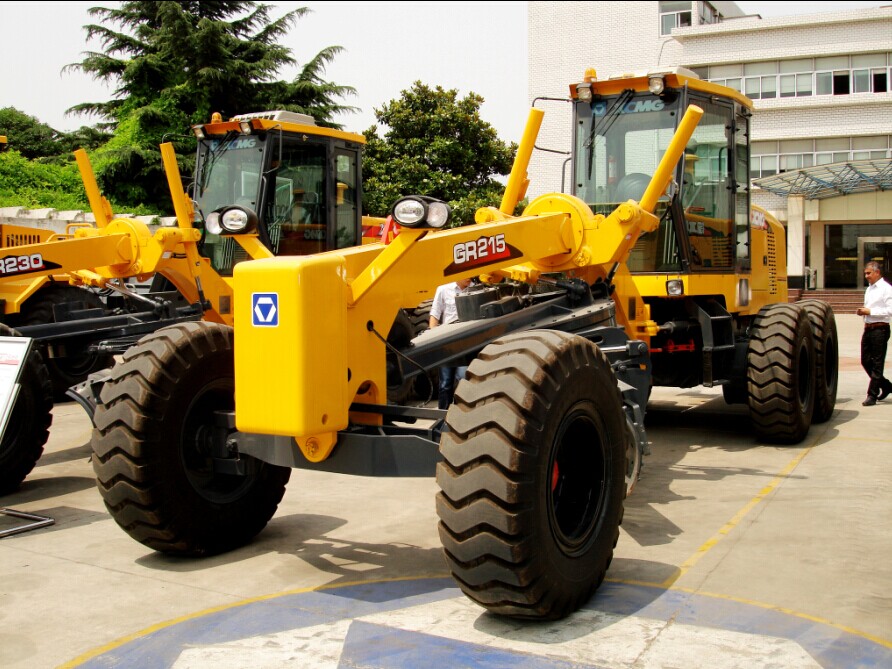

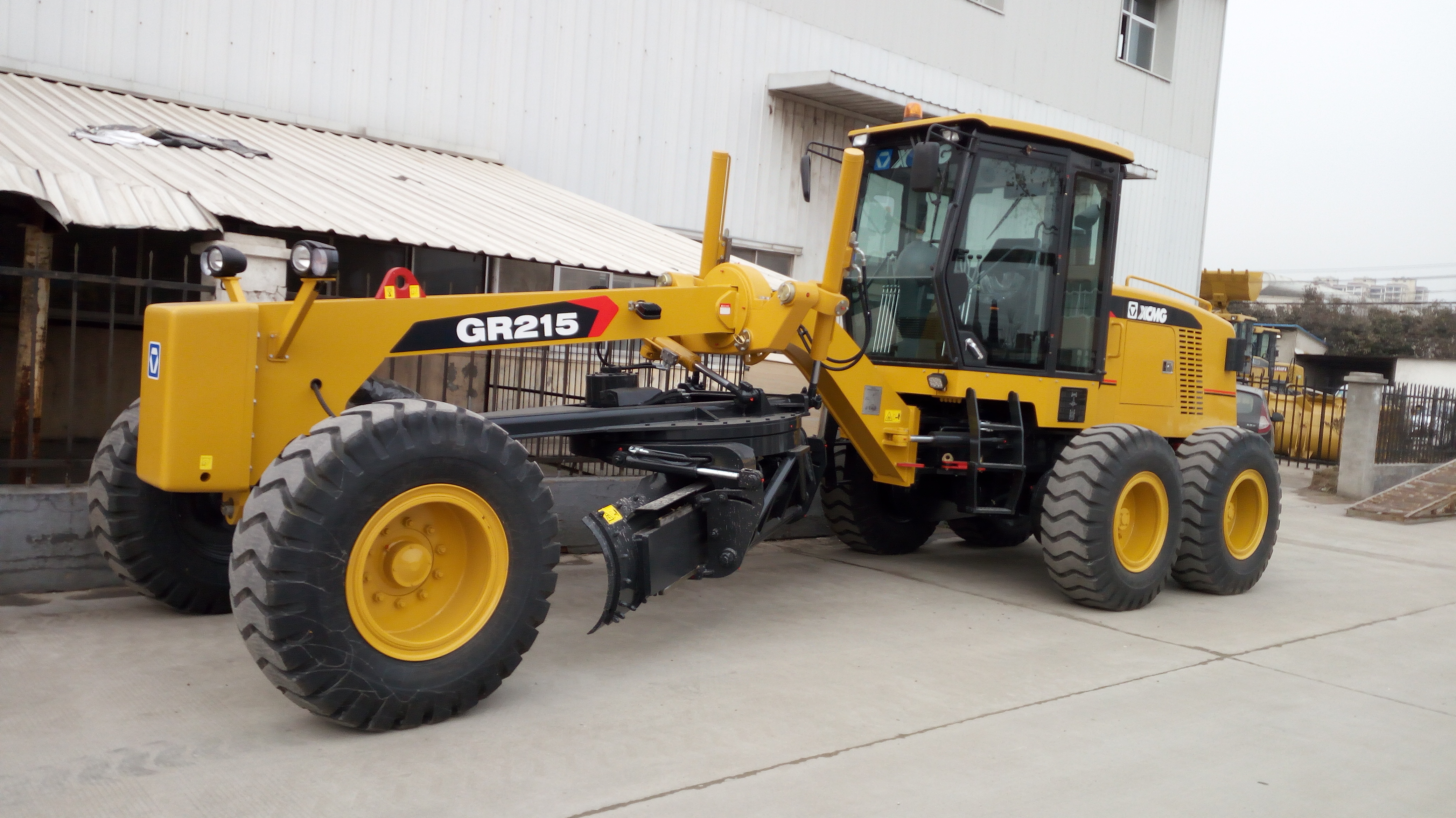

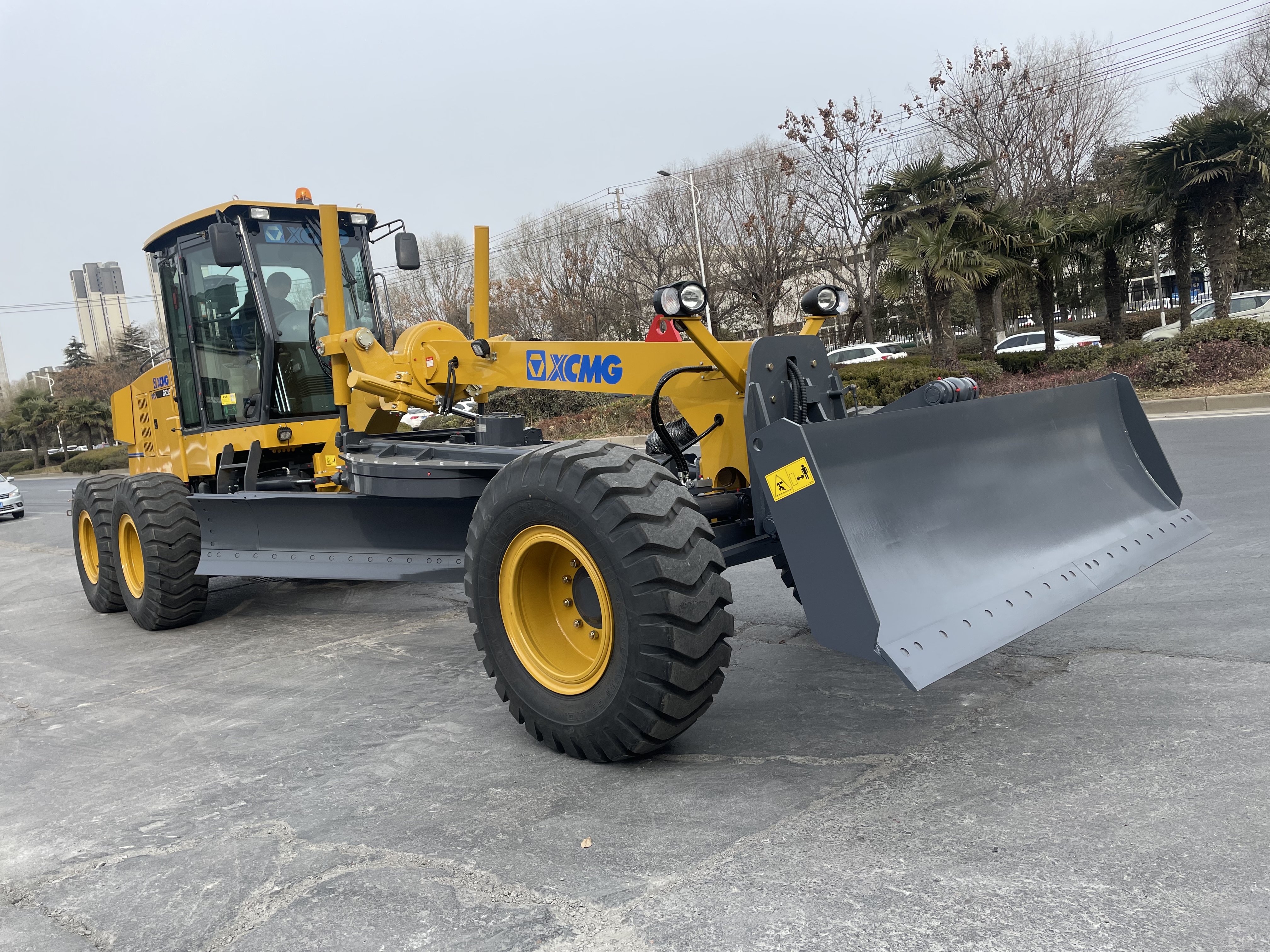

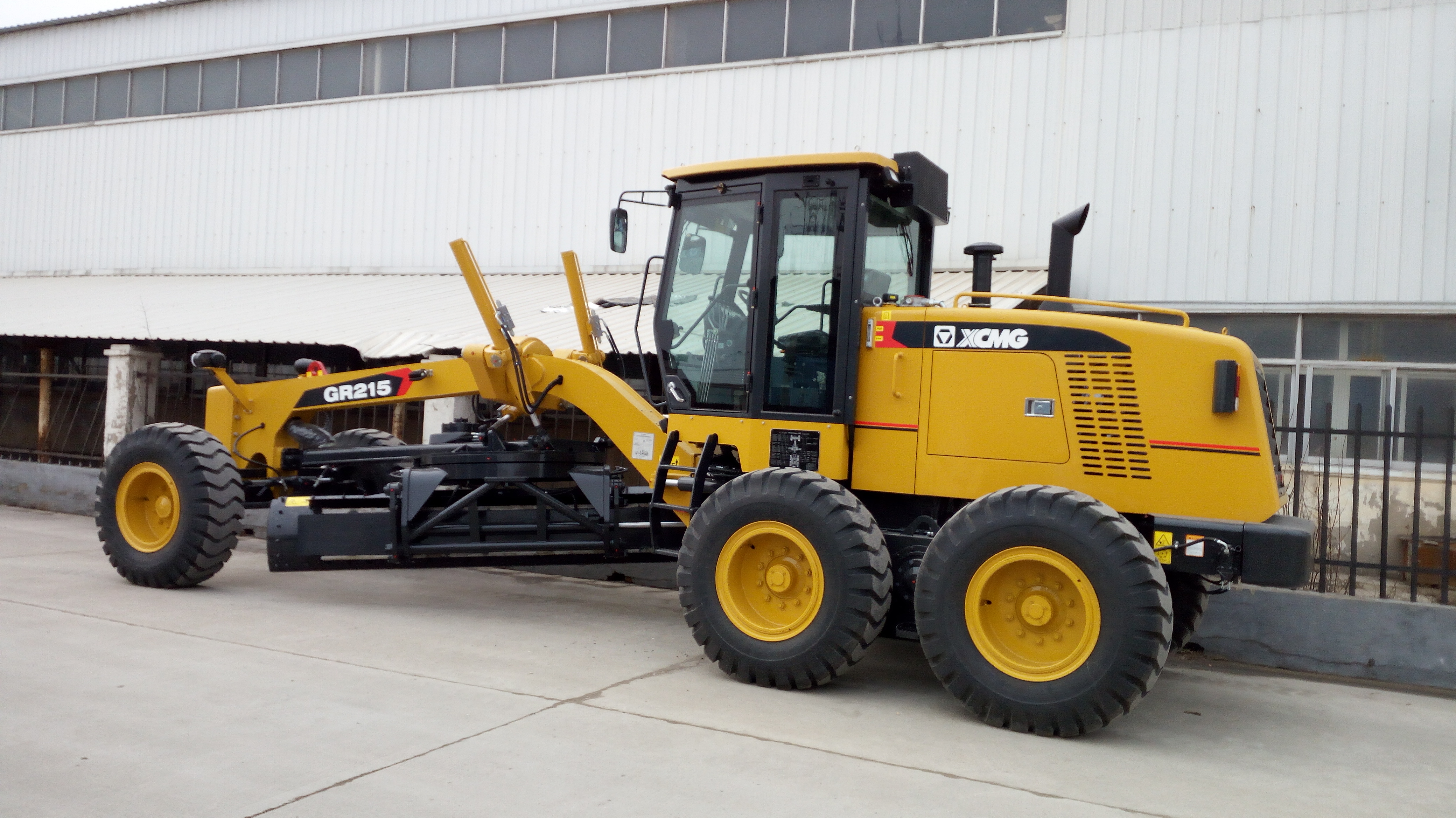

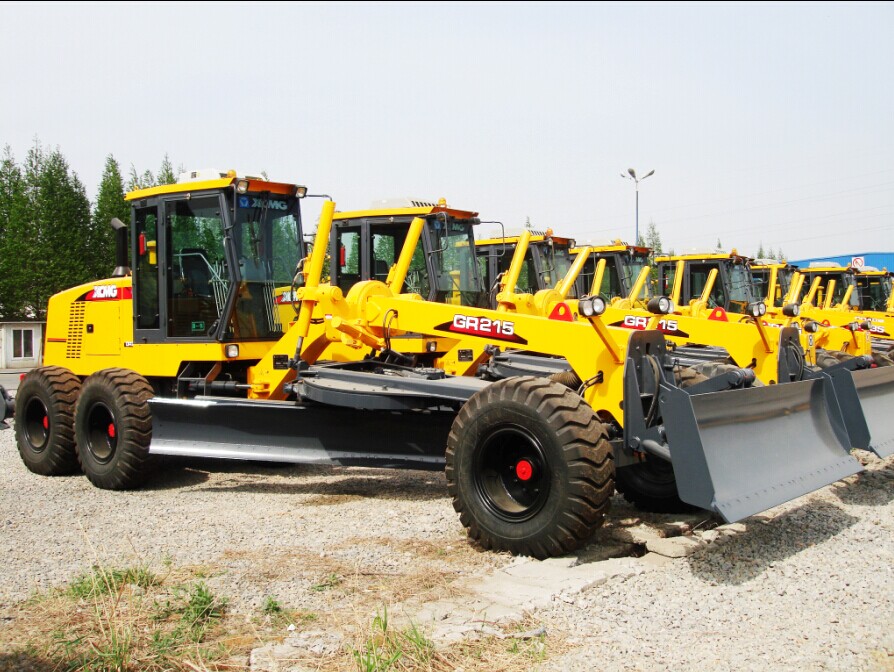

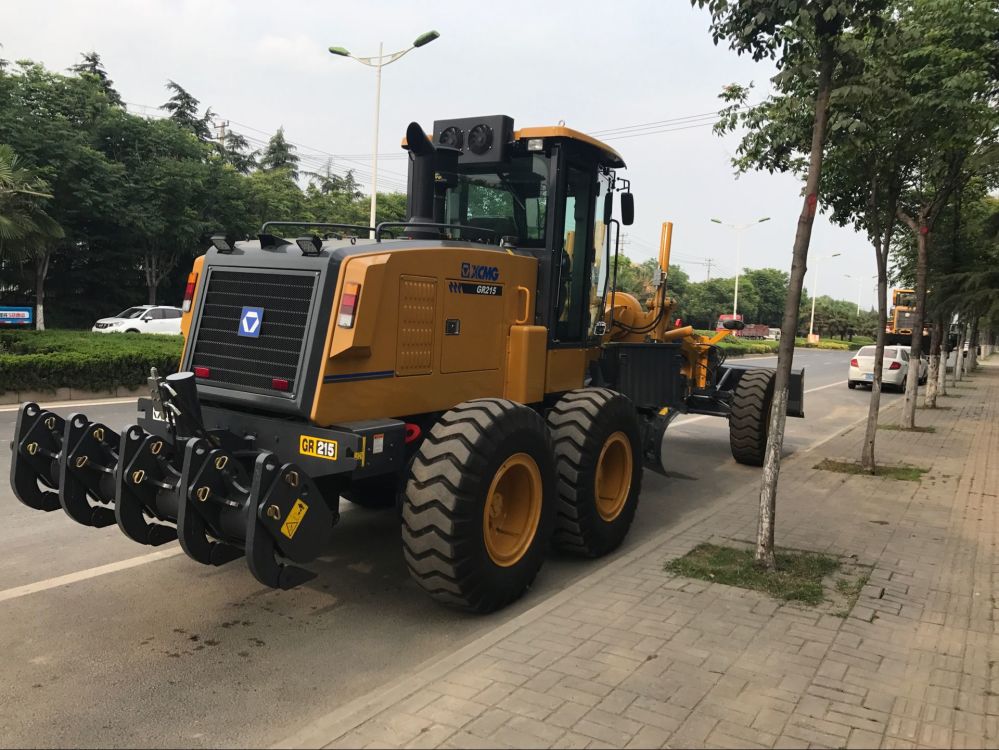

GR215 Road Grader 16.5 Ton 215HP Motor Grader for Sale
GR215 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland. The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.
Advantages and Highlights * The GR215 adopts 6CTA8.3 turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.
* Torque converter has big torque coefficient, wide high efficiency area. It has good combination working characteristics with engine. The transmis- sion box has six forward gears, three backward gears, with neutral start protection function, gear shift controlled by electro-hydraulic, flexible operation, shift without impact, reasonable speed ratio distribution, meet the requirements of various working conditions.
* The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability. The main drive of the rear axle is equipped with"NO - SPIN" self-locking differential.
* The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the
articulated frame, which can further reduce the turning radius.
* The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the
maintainability.


Specifications

SpecificationGR215
Basic specificationEngine model6CTAA8.3/6CTA8.3
Rated power/speed153kW/2200rpm 160kW/2200rpm
Dimension(LxWxH)8970×2625×3420mm
Operating weight(Standard)16500kg
Performance specificationTravelling speed ,forward5,8,11,19,23,38 km/h
Travelling speed ,reverse5,11,23 km/h
Tractive force(f=0.75)90KN
Max. gradeability30%
Tire inflation pressure260 kPa
Working hydraulic pressure16 MPa
Transmission pressure1.3~1.8MPa
Operating specificationMax. steering angle of front wheels±50°
Max. lean angle of front wheels±17°
Max. oscillation angle of front axle±15°
Max. oscillation angle of balance box15
Frame articulation angle±27°
Min. turning radius using articulation7.3m
BladeMaximum lift above ground450mm
Maximum depth of cutting500mm
Maximum blade position angle90°
Blade cutting angle28°-70°
Circle reversing rotation360°
Moldboard width X height4270×610mm
